Creating LUN

Disk Details & Snapshot Creation

Storage Pool Creation

Primary step to configuration

Once you login to console you will get sun wel come screen saying this this vm belongs sunstorage 7000 series it for simulation perpouse only. after that you have to configure data link in my case i used two lancards in virtual appliance after that Dns , sync the time with server
its goin go.....................

Sun Storage Unifier 7000 login

Get into Another system and open Mozilla ( This Appliance supports only Mozilla or IE7 only ).

Basic Configuration you have to done . like Storage box name . console ip and domain, gateway details. password for root. this is only needed to intaiate the appliance.

sun storage 7000, Vm ware

I Tried this Virtual Machine on Vm Ware Workstation 6.5.

When u Power on the machine you will get statup screen like this.

Sunstorage BOX 7000 series

Few Days back we had a Knowledge Transfer session for Our IBM NAS / TSM Setup in Our office. after that we are decided to work with any virtual appliance similar to NAS/SAN in that search i found sun storage box 7000, Hp San (Lefthandworks), Openfiler among that VTL simulator. (Cafio). So I faced serveral problem and solved it accordingly in setting up different appliances.
who want to download sunstorage the link is
http://www.sun.com/storage/disk_systems/unified_storage/resources.jsp
Openfiler
www.openfiler.com.
While whorking with this i made screen shots.

get info

In NTUTIL directory we can find get_info command this gives all details including hardware and software associated with DP server

server Log

Above screen shows LOG path

DP Core details

One of the finest option to find core details of IDB (Data Protector.)
omnidbcheck -core
this gives full details of dataprotector server.
(like hosts,devices, media pool details and many more options details )

IDB Constistance check.

omnidbcheck -bf

This command checks constistance of the database .

Restoring A session

omnidowload list_devices

omnidowload list_devices

This command shows devices and its associated host,device type and media pool

Dp works on Port No 5555. We can check whether port is listing or not

use Telnet to find this

Telnet 5555

Then above display will show you that Data protector inet service is denied the access.

Copying Licensce details to a TXT File

How to Know Your Data Protector Licensce details
omnicc -check_licenses -detail > lic.txt

By above command i am just redirectory licensce details to lic.txt file as show in above picture.

What is the role of USER in Backup

When i logged with a user level in DP server system and tried to open cell manager.
The below error message is appeared due i didnot added this user in admin/operator group.

Dp with User Permissions

What is the role of USER in Backup
The backup owner is different

If your backups are configured to run as private, the user starting the
backup is the owner of the data. For example, if user A performs a fullbackup and user B tries to start an incremental backup, the incrementalbackup will be performed as a full backup. This is because the data foruser A is private and cannot be used as a base for user B’s incrementalbackup. The same problem occurs if user A performs a full backup, then user B performs an object copy session, and the original is exported or overwritten. User A cannot perform an incremental backup because the full backup (the copy) now belongs to user B.
Action
Configure backup ownership in the advanced backup specification options. The backup owner should be in the Admin user group. This willmake this user the owner of all backups based on this backup
specification, regardless of who actually starts the backup session.

Service Status Commands

Service Status Command:
Omnisv -status

Omnicheck for DNS resluation

In below first case The message cannot connect at that time the Machine was switched off
Once I powered on the clinet I did not get any message.

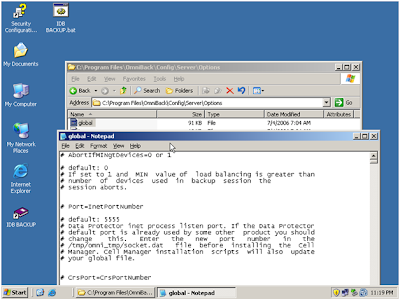

Global Option File
It plays key role when we configure DCBF file path :

Error Message Guide

HP Dp having TEXT Based Help File.

Format of Log Message:

Format of Log Message:



Example:


8/16/2009 8:04:19 AM DBSM.1656.1208 ["db/vel_cls_spec.c /main/dp56/3":718] A.06.00 b331

VELOCIS DB ERROR [2] internal error [-2009] The session is disconnected (S_SESDISCON)

RDS.log Contains IDB logs. The file resides on the Cell
Manager in:
Windows:
\db40\datafiles
\catalog
UNIX:
/var/opt/omni/server/db40/datafiles
/catalog
sanconf.log Contains session reports generated by the sanconf command.
sm.log Contains details on internal errors that occurred during backup and restore sessions,
such as errors in parsing backup specifications
.
upgrade.log This log is created during upgrade and contains upgrade core part (UCP) and upgrade
detail part (UDP) messages.
OB2_Upgrade.log (UNIX only)
This log is created during upgrade and contains traces of the upgrade process.
IS_install.log Contains a trace of remote installation and resides on the Installation Server.
sap.log, oracle8.log, informix.log, sybase.log, db2.log
Application specific logs contain traces of integration calls between the application and
Data Protector. The files reside on the application systems.

The Log Path
Windows: \log ie -> c:\program files\omniback\log

IPC Error

After Adding Host Entry also i am unable to Get The Clinet Installation Sucssessfull. So for Time Being I Installed Disk Agent Manually in Clinet Machine

IPC error IN Data Protector

GREAT .
I Strongly belive that i belongs O.U University for my Computer education.
O stands for OBSERVE
U stands for UNDERSTAND
simply u can call it as OPEN UNIVERSITY .
Now I got One More Problem in this play IPC ERROR generally this message stand for NETWORK Connectivity Problem.
This problem i faced when i am trying to add XP clinet to DP Server. I am able to authenticate & Ping but it is unable to Install CLIENT. what would be the problem. my be DNS Resolve. I am trying to resolve the issue adding host entry at Client side( XP system ). Hope It Can Resolve......

While Running DP CRS problem and Solution

While Playing Around DP . This is one of Error Message. CRS not Reach Cell Manager.
HUMMMM>>>> What to Do Simply Press Details-> Ya I am Able to see Error message and Some way to analyse the Problem ok Let Try.......




Ya It' s Showing Something . Some Clue is ther that is ONE OF SERIVICES is not working fine let me check services

Ok I am Seeing Serivices I Trying to Start DP CRS service but it not running due to Some Message
What is that.........??????

Logon Failure . ok Let me chek the Account Associated with that service. oK it's Administrator recently i may changed the Password ??? ( I Think So...........!!!!!!). Ok what ever it May be I am Giving Current Credentials.


Now I am Checking with omnisv - Status.
Hey It's WORKING }.

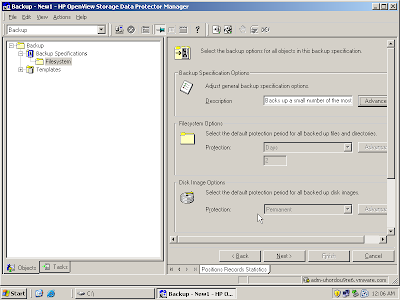

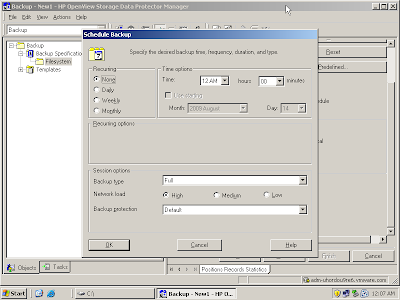

Firing A backup

Some of the IDB Files Path and sizes

IDB full Option Screen

Detail Catalog Binary Files

we got a realtime issue in our office.

That DCBF Directory occupying more Space but there is no more space in C:\ We Change the Path of DCBF later i will post that screens..........
