Tuesday, December 8, 2009

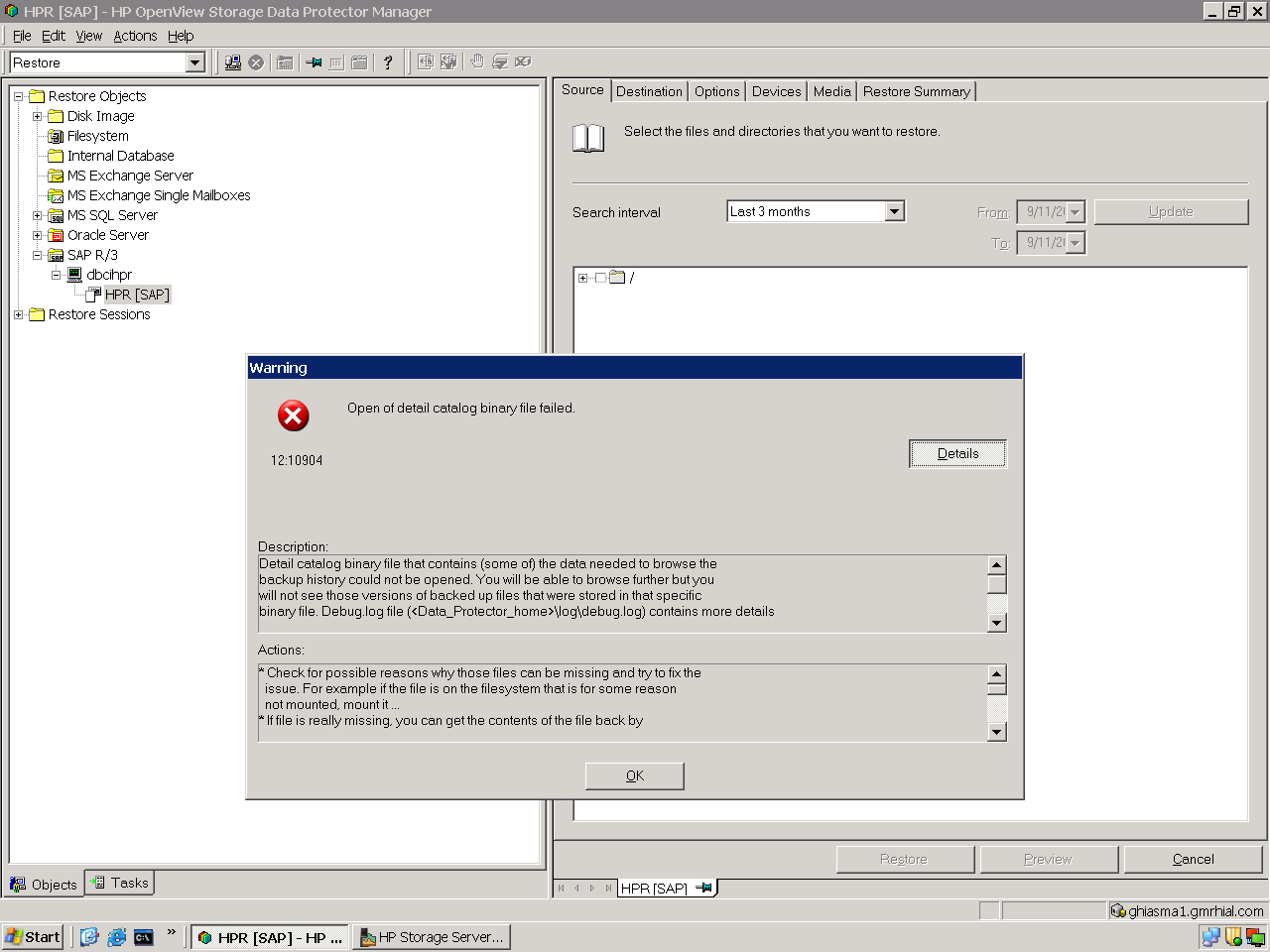

DCBF is moved getting errors ????????




Data Protector could not store a part of the detail catalog during the backup or import. All files that are backed up on the same device after this message are not marked as backed up in the Data Protector Internal Database. Backup is still valid and restore of complete objects is possible.
------------

* Check the additional error message for the cause of the problem and fix the problem. Most often the problem will occur when the disk runs out of space or when the maximum size limit of the DC directories is reached. * If you want to browse files in that particular backup import the catalog for the medium that was in use when the error occurred and all media that were written after the error in the same device
----------------------------

Check for possible reasons why those files can be missing and try to fix the issue. For example if the file is on the filesystem that is for some reason not mounted, mount it ... * If file is really missing, you can get the contents of the file back by executing the following procedure: 1) Stop all sessions and close all GUIs 2) Run: omnidbutil -fixmpos 3) Find the correct medium and run "Import catalog" for that medium. Note that the debug.log contains the medium ID of the file and that you can use: omnimm -media_info * You may want to further check the Internal Database and then recover it if required. See the chapter "Managing the Data Protector Internal Database" in Data Protector Admin Guide

The above messages contains the problem and it solution. we found when some of dcbf files moved related bakup is firing at that time it is fired. if dcbf directory getting more space simply map additional directory to IDB but don't move to some other place

Friday, November 27, 2009

Some of errors in IDB

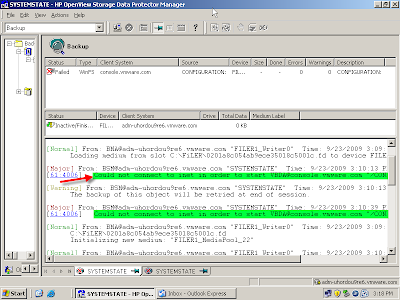

The above screens shows IDB databases(MMD, DCBF) errors. when thease errors occured the best tool fix this is omnidbcheck -fixmpos, Pls go through my previous post on this for more details.






Finding Medium


The Above screen shows medium importing ,
Yesterday i faced a issue with LTO3 Tapes when the tapes changed by some other egneer mistakenly he changed the tape in different slots. so we run the scan command in DP the entire tapes lost their pool names, after that import/scan command we indified each tape belongs to which pool the above screen shows the same.

Thursday, November 12, 2009

Some more screens from OPEN FILER NAS





Most important thing is openfiler webinterface administrator login
for that user name is : openfiler
password is : password

any body can easily configure who is having minimum knowledge of NAS concept.

Monday, November 9, 2009

Openfiler NAS

http://www.openfiler.com/

Any body want know how a NAS works and Who wants learn Clustering they can use openfiler in vmware and you can emulate cluster environment . This is Freeware so everybody can download start playing with your OWN NAS storage.

Mainly for students who want to learn Clusters , Nas Storage it good tool you can practice with this. It is support ISCSI protocal so qurom disk can create in cluster.
For more info
http://www.openfiler.com/products/screenshots

Tuesday, November 3, 2009

Data Protector License details

Licensing mode : LocalLicense server dp@dp.com

Category Number of Licenses

Cell Manager for all platforms 0

Cell Manager for Windows / Linux 1

Tape drive for SAN / all platforms 2

Direct attached tape drive for Windows / NetWare / Linux 2

Multi-Drive Server for UNIX 0

Multi-Drive Server for Windows / NetWare 0

On-line Extension for UNIX 0

On-line Extension for Windows 0

Manager-of-Managers Extension for all platforms 0

Manager-of-Managers Extension for Windows / Linux 0

61-250 Slot Libraries Extension for UNIX 0

61-250 Slot Libraries Extension for Windows 0

Unlimited Slot Libraries Extension for UNIX 0

Unlimited Slot Libraries Extension for Windows 0

EMC Split Mirror Extension 0

HP XP Split Mirror Extension 0

Single Server Edition for all platforms 0

Single Server Edition for Windows / Linux 0

On-line Extension for ONE UNIX system 5

On-line Extension for ONE Windows / Linux system 10

Extension for ONE 61-250 Slot Library 1

Extension for ONE 61-250 Slot Library for Windows 0

Extension for ONE Unlimited Slot Library 0

Extension for ONE Unlimited Slot Library for Windows 0

Zero Downtime Backup Extension for ONE EMC Symmetrix 0

Zero Downtime Backup Extension for ONE HP StorageWorks XP 0

Extension for ONE NDMP Server 0

Zero Downtime Backup for 1 TB EMC Symmetrix / DMX 0

Zero Downtime Backup for 1 TB HP StorageWorks XP 0

Zero Downtime Backup for 1 TB HP StorageWorks EVA/VA 0

Instant Recovery for 1 TB HP StorageWorks XP 0

Instant Recovery for 1 TB HP StorageWorks EVA/VA 0

Direct Backup for 1 TB HP StorageWorks XP or compatible 0

Direct Backup using NDMP for 1 TB 0

Direct Backup for 1 TB HP StorageWorks VA 0

Zero Downtime Backup for 1 TB HP StorageWorks Modular SAN Array 1000 0

Instant Recovery for 1 TB HP StorageWorks Modular SAN Array 1000 0

Advanced backup to disk for 1 TB 0

We can Get license details through OMNICC command . above data shows the license details for data protector.

Saturday, October 31, 2009

IPC Read ErrorSystem error

Major] From: BSM@dp@dp.com "Friday_UNIXFS_Full" Time: 10/31/2009 6:35:25 PM[61:3003] Lost connection to VBDA named "10.86.51.13 [/u05]"on host 10.86.51.13.Ipc subsystem reports: "IPC Read ErrorSystem error: [10053] Software caused connection abort"[Critical] From: VBDA@mysap "10.86.51.16 [/oracle]" Time: 10/31/2009 6:34:24 PMReceived ABORT request from SM => aborting.[Critical] From: VBDA@mysap "10.86.51.16 [/usr]" Time: 10/31/2009 6:34:24 PMReceived ABORT request from SM => aborting.[Major] From: BSM@dp@dp.com "Friday_UNIXFS_Full" Time: 10/31/2009 6:36:02 PM[61:3003] Lost connection to VBDA named "10.86.51.16 [/var]"on host 10.86.51.16.Ipc subsystem reports: "IPC Read ErrorSystem error: [10053] Software caused connection abort"[Critical] From: VBDA@mysap "10.86.51.16 [/oracle]" Time: 10/31/2009 6:34:24 PMConnection to Media Agent broken => aborting.[Critical] From: VBDA@mysap "10.86.51.16 [/usr]" Time: 10/31/2009 6:34:24 PMConnection to Media Agent broken => aborting.[Major] From: BSM@dp@dp.com "Friday_UNIXFS_Full" Time: 10/31/2009 6:36:02 PM[61:3003] Lost connection to VBDA named "10.86.51.16 [/oracle]"on host 10.86.51.16.Ipc subsystem reports: "IPC Read ErrorSystem error: [10053] Software caused connection abort"[Major] From: BSM@dp@dp.com "Friday_UNIXFS_Full" Time: 10/31/2009 6:36:02 PM[61:3003] Lost connection to VBDA named "10.86.51.16 [/usr]"on host 10.86.51.16.Ipc subsystem reports: "IPC Read ErrorSystem error: [10053] Software caused connection abort


simply aborted and refire the backup

Thursday, October 29, 2009

Firing A Cell Manager Recovery Backup






This one of best option to take DP Cell Manger server backup. which consists installed server volumes ,configuration (System State), and IDB which helps to recover IDB in Emergency situations. I am working on Cell Manager Backup and OBDR and ASR .

Wednesday, October 21, 2009

Example SAP intigrated backup Errors

[Normal] From: BSM@storge.dp.com "TuesdaySAPDB_Full" Time: 10/21/2009 3:15:32 PM OB2BAR application on "dbcihpr" successfully started.
BR0051I BRBACKUP 7.00 (32)BR0262I Enter database user name[/password]:BR0055I Start of database backup: bebstvfo.anf 2009-10-21 15.15.32BR0484I BRBACKUP log file: /oracle/HPR/sapbackup/bebstvfo.anfBR0477I Oracle pfile /oracle/HPR/102_64/dbs/initHPR.ora created from spfile /oracle/HPR/102_64/dbs/spfileHPR.ora
BR0280I BRBACKUP time stamp: 2009-10-21 15.15.33BR0319I Control file copy created: /oracle/HPR/sapbackup/cntrlHPR.dbf 14696448
BR0280I BRBACKUP time stamp: 2009-10-21 15.15.33BR0057I Backup of database: HPRBR0058I BRBACKUP action ID: bebstvfoBR0059I BRBACKUP function ID: anfBR0110I Backup mode: ALLBR0077I Database file for backup: /oracle/HPR/sapbackup/cntrlHPR.dbfBR0061I 56 files found for backup, total size 173034.445 MBBR0143I Backup type: onlineBR0130I Backup device type: util_fileBR0109I Files will be saved by backup utilityBR0126I Unattended mode active - no operator confirmation required
BR0280I BRBACKUP time stamp: 2009-10-21 15.15.34BR0315I 'Alter database begin backup' successful
BR0280I BRBACKUP time stamp: 2009-10-21 15.15.34BR0229I Calling backup utility with function 'backup'...BR0278I Command output of '/usr/sap/HPR/SYS/exe/run/backint -u HPR -f backup -i /oracle/HPR/sapbackup/.bebstvfo.lst -t file -c':[Normal] From: OB2BAR_BACKINT@ghiasap1 "HPR" Time: 10/21/09 15:15:34 Backint is started with the following parameters /usr/sap/HPR/SYS/exe/run/backint -u HPR -f backup -i /oracle/HPR/sapbackup/.bebstvfo.lst -t file -c.
[Normal] From: BMA@storge.dp.com "HP:Ultrium 4-SCSI_2_ghiasma1" Time: 10/21/2009 3:15:39 PM STARTING Media Agent "HP:Ultrium 4-SCSI_2_ghiasma1"
[Normal] From: BMA@storge.dp.com "HP:Ultrium 4-SCSI_2_ghiasma1" Time: 10/21/2009 3:15:42 PM By: UMA@storge.dp.com@Changer1:0:0:1 Loading medium from slot 27 to device Tape2:0:1:0C
[Normal] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/2009 3:16:33 PM Starting OB2BAR Backup: dbcihpr:HPR.3 "SAP"
[Normal] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/09 15:16:33 Starting OB2BAR Backup: dbcihpr:HPR.3 "SAP" [Normal] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/2009 3:16:33 PM Starting OB2BAR Backup: dbcihpr:HPR.0 "SAP"
[Normal] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/2009 3:16:33 PM Starting OB2BAR Backup: dbcihpr:HPR.1 "SAP"
[Normal] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/2009 3:16:33 PM Starting OB2BAR Backup: dbcihpr:HPR.2 "SAP"
[Normal] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/09 15:16:33 Starting OB2BAR Backup: dbcihpr:HPR.0 "SAP" [Normal] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/09 15:16:33 Starting OB2BAR Backup: dbcihpr:HPR.1 "SAP" [Normal] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/09 15:16:33 Starting OB2BAR Backup: dbcihpr:HPR.2 "SAP"
BR0280I BRBACKUP time stamp: 2009-10-21 15.27.38#FILE..... /oracle/HPR/sapdata2/sr3700_7/sr3700.data7#SAVED.... 20091021.0021.03
BR0280I BRBACKUP time stamp: 2009-10-21 15.27.54#FILE..... /oracle/HPR/sapdata1/sr3700_1/sr3700.data1#SAVED.... 20091021.0021.02
BR0280I BRBACKUP time stamp: 2009-10-21 15.27.54#FILE..... /oracle/HPR/sapdata4/sr3700_18/sr3700.data18#SAVED.... 20091021.0021.01
BR0280I BRBACKUP time stamp: 2009-10-21 15.38.27#FILE..... /oracle/HPR/sapdata4/sr3700_17/sr3700.data17#SAVED.... 20091021.0021.02
BR0280I BRBACKUP time stamp: 2009-10-21 15.38.53#FILE..... /oracle/HPR/sapdata4/sr3700_16/sr3700.data16#SAVED.... 20091021.0021.03
BR0280I BRBACKUP time stamp: 2009-10-21 15.38.56#FILE..... /oracle/HPR/sapdata1/sr3700_2/sr3700.data2#SAVED.... 20091021.0021.01
BR0280I BRBACKUP time stamp: 2009-10-21 15.39.45#FILE..... /oracle/HPR/sapdata3/undo_1/undo.data1#SAVED.... 20091021.0021.00
BR0280I BRBACKUP time stamp: 2009-10-21 15.48.09#FILE..... /oracle/HPR/sapdata4/sr3700_14/sr3700.data14#SAVED.... 20091021.0021.01
BR0280I BRBACKUP time stamp: 2009-10-21 15.48.29#FILE..... /oracle/HPR/sapdata3/sr3700_12/sr3700.data12#SAVED.... 20091021.0021.02
BR0280I BRBACKUP time stamp: 2009-10-21 15.48.55#FILE..... /oracle/HPR/sapdata2/sr3700_8/sr3700.data8#SAVED.... 20091021.0021.03
BR0280I BRBACKUP time stamp: 2009-10-21 15.49.23#FILE..... /oracle/HPR/sapdata2/sr3700_5/sr3700.data5#SAVED.... 20091021.0021.00
BR0280I BRBACKUP time stamp: 2009-10-21 15.57.13#FILE..... /oracle/HPR/sapdata1/sr3700_3/sr3700.data3#SAVED.... 20091021.0021.01
BR0280I BRBACKUP time stamp: 2009-10-21 15.57.37#FILE..... /oracle/HPR/sapdata1/sr3700_4/sr3700.data4#SAVED.... 20091021.0021.02
BR0280I BRBACKUP time stamp: 2009-10-21 15.57.40#FILE..... /oracle/HPR/sapdata4/sr3700_13/sr3700.data13#SAVED.... 20091021.0021.00
BR0280I BRBACKUP time stamp: 2009-10-21 15.57.54#FILE..... /oracle/HPR/sapdata4/sr3700_19/sr3700.data19#SAVED.... 20091021.0021.03[Major] From: BMA@storge.dp.com "HP:Ultrium 4-SCSI_2_ghiasma1" Time: 10/21/2009 4:06:12 PM[90:51] Tape2:0:1:0C Cannot write to device (Details unknown.)
[Critical] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/09 16:06:48 Received ABORT request from SM => aborting. [Critical] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/2009 4:06:48 PM Received ABORT request from SM => aborting.
[Critical] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/2009 4:06:48 PM Received ABORT request from SM => aborting.
[Critical] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/2009 4:06:48 PM Received ABORT request from SM => aborting.
[Critical] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/09 16:06:48 Received ABORT request from SM => aborting. [Critical] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/2009 4:06:48 PM Received ABORT request from SM => aborting.
[Critical] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/09 16:06:48 Received ABORT request from SM => aborting. BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata4/sr3700_20/sr3700.data20BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata4/sr3700_15/sr3700.data15[Major] From: BMA@storge.dp.com "HP:Ultrium 4-SCSI_2_ghiasma1" Time: 10/21/2009 4:06:12 PM[90:161] Cannot write filemark. (Details unknown.)
BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata4/sr3700_20/sr3700.data20[Critical] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/09 16:06:48 Received ABORT request from SM => aborting. BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata4/sr3700_15/sr3700.data15BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata4/sr3700_21/sr3700.data21[Major] From: BMA@storge.dp.com "HP:Ultrium 4-SCSI_2_ghiasma1" Time: 10/21/2009 4:06:12 PM[90:161] Cannot write filemark. (Details unknown.)
BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata4/sr3700_21/sr3700.data21BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata3/sr3700_10/sr3700.data10BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata3/sr3700_10/sr3700.data10[Critical] From: BMA@storge.dp.com "HP:Ultrium 4-SCSI_2_ghiasma1" Time: 10/21/2009 4:07:33 PM[90:56] Tape2:0:1:0C Cannot close device (Trailing filemark(s) could not be written.)
[Normal] From: BMA@storge.dp.com "HP:Ultrium 4-SCSI_2_ghiasma1" Time: 10/21/2009 4:07:33 PM By: UMA@storge.dp.com@Changer1:0:0:1 Unloading medium to slot 27 from device Tape2:0:1:0C
[Critical] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/2009 4:07:58 PM[80:1031] Received ABORT request from NET => aborting.
[Critical] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/09 16:07:58 [80:1031] Received ABORT request from NET => aborting. [Critical] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/2009 4:07:58 PM[80:1031] Received ABORT request from NET => aborting.
[Normal] From: BMA@storge.dp.com "HP:Ultrium 4-SCSI_2_ghiasma1" Time: 10/21/2009 4:07:58 PM ABORTED Media Agent "HP:Ultrium 4-SCSI_2_ghiasma1"
[Critical] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/2009 4:07:58 PM[80:1031] Received ABORT request from NET => aborting.
[Critical] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/2009 4:07:58 PM[80:1031] Received ABORT request from NET => aborting.
[Critical] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/09 16:07:58 [80:1031] Received ABORT request from NET => aborting. [Normal] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/2009 4:07:58 PM Completed OB2BAR Backup: dbcihpr:HPR.2 "SAP"
[Critical] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/09 16:07:58 [80:1031] Received ABORT request from NET => aborting. [Normal] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/2009 4:07:58 PM Completed OB2BAR Backup: dbcihpr:HPR.0 "SAP"
[Normal] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/2009 4:07:58 PM Completed OB2BAR Backup: dbcihpr:HPR.1 "SAP"
[Normal] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/2009 4:07:58 PM Completed OB2BAR Backup: dbcihpr:HPR.3 "SAP"
[Normal] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/09 16:07:58 Completed OB2BAR Backup: dbcihpr:HPR.2 "SAP" [Major] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/2009 4:07:58 PM Aborting connection to BSM. Abort code 2.
[Normal] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/09 16:07:58 Completed OB2BAR Backup: dbcihpr:HPR.0 "SAP" [Major] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/2009 4:07:58 PM Aborting connection to BSM. Abort code 2.
[Major] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/2009 4:07:58 PM Aborting connection to BSM. Abort code 2.
[Major] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/2009 4:07:58 PM Aborting connection to BSM. Abort code 2.
[Normal] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/09 16:07:58 Completed OB2BAR Backup: dbcihpr:HPR.1 "SAP" [Major] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/09 16:07:58 Aborting connection to BSM. Abort code 2. [Major] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/09 16:07:58 Aborting connection to BSM. Abort code 2. [Major] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/2009 4:07:58 PM Aborting connection to BSM. Abort code -2.
[Major] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/09 16:07:58 Aborting connection to BSM. Abort code 2. [Major] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/2009 4:07:58 PM Aborting connection to BSM. Abort code -2.
[Critical] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/09 16:07:58 [80:1031] Received ABORT request from NET => aborting. [Major] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/2009 4:07:58 PM Aborting connection to BSM. Abort code -2.
[Major] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/2009 4:07:58 PM Aborting connection to BSM. Abort code -2.
[Normal] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/09 16:07:58 Completed OB2BAR Backup: dbcihpr:HPR.3 "SAP" [Major] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/09 16:07:58 Aborting connection to BSM. Abort code 2. Cannot complete backup set "Bad catalog access for message #7598 in set 11![Major] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/09 16:07:58 Aborting connection to BSM. Abort code -2. Cannot complete backup set "Bad catalog access for message #7598 in set 11!Cannot complete backup set "Bad catalog access for message #7598 in set 11![Major] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/09 16:07:58 Aborting connection to BSM. Abort code -2. Cannot complete backup set "Bad catalog access for message #7598 in set 11!BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata4/sr3_27/sr3.data27BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata3/sr3_12/sr3.data12BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata3/sr3_11/sr3.data11BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata1/sr3_2/sr3.data2BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata1/sr3_4/sr3.data4BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata4/sr3_24/sr3.data24BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata4/sr3_16/sr3.data16[Major] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/09 16:07:58 Aborting connection to BSM. Abort code -2. BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata2/sr3_6/sr3.data6BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata3/sr3_13/sr3.data13BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata4/sr3_23/sr3.data23BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata2/sr3_9/sr3.data9BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata4/sr3_17/sr3.data17BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata4/sr3_20/sr3.data20BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata1/system_2/system.data2BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata1/system_1/system.data1BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata1/sysaux_2/sysaux.data2BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapbackup/cntrlHPR.dbf[Major] From: OB2BAR_SAPBACK@serversap1 "HPR" Time: 10/21/09 16:07:58 Aborting connection to BSM. Abort code -2. BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata3/sr3_14/sr3.data14BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata1/sr3_1/sr3.data1BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata4/sr3_21/sr3.data21BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata2/sr3_8/sr3.data8BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata4/sr3_26/sr3.data26BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata4/sr3_25/sr3.data25BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata4/sr3_18/sr3.data18BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata1/sr3usr_1/sr3usr.data1BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata1/sr3_3/sr3.data3BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata2/sr3_10/sr3.data10BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata4/sr3_22/sr3.data22BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata1/sr3_5/sr3.data5BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata2/sr3_7/sr3.data7BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata4/sr3_19/sr3.data19BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata1/system_3/system.data3BR0233E Backup utility has reported an error while saving file /oracle/HPR/sapdata1/sysaux_1/sysaux.data1[Normal] From: OB2BAR_BACKINT@ghiasap1 "HPR" Time: 10/21/09 16:07:58 Backint exits with the code (1).
BR0280I BRBACKUP time stamp: 2009-10-21 16.07.58BR0279E Return code from '/usr/sap/HPR/SYS/exe/run/backint -u HPR -f backup -i /oracle/HPR/sapbackup/.bebstvfo.lst -t file -c': 1
BR0232E 15 of 56 files saved by backup utilityBR0280I BRBACKUP time stamp: 2009-10-21 16.07.58BR0231E Backup utility call failed
BR0280I BRBACKUP time stamp: 2009-10-21 16.08.01BR0317I 'Alter database end backup' successful
BR0056I End of database backup: bebstvfo.anf 2009-10-21 16.07.58BR0280I BRBACKUP time stamp: 2009-10-21 16.08.01BR0054I BRBACKUP terminated with errors[Major] From: OB2BAR_OMNISAP@ghiasap1 "OMNISAP" Time: 10/21/09 16:08:01 BRBACKUP /usr/sap/HPR/SYS/exe/run/brbackup -t online -d util_file -c -m all -u system/******* returned 5
BR0002I BRARCHIVE 7.00 (32)BR0262I Enter database user name[/password]:BR0006I Start of offline redo log processing: aebstzwr.sve 2009-10-21 16.08.01BR0484I BRARCHIVE log file: /oracle/HPR/saparch/aebstzwr.sveBR0477I Oracle pfile /oracle/HPR/102_64/dbs/initHPR.ora created from spfile /oracle/HPR/102_64/dbs/spfileHPR.ora


of messages (3000) that can be written to the database. The messages from this agent will still be visible while session is running, however they will not be stored into the database. (To increase the number of messages change the SmMaxAgentMessages value in the global option file.)
[Normal] From: BSM@storge.dp.com "TuesdaySAPDB_Full" Time: 10/21/2009 4:08:24 PM OB2BAR application on "dbcihpr" disconnected.
[Critical] From: BSM@storge.dp.com "TuesdaySAPDB_Full" Time: 10/21/2009 4:08:24 PM None of the Disk Agents completed successfully. Session has failed.
[Normal] From: BSM@storge.dp.com "TuesdaySAPDB_Full" Time: 10/21/2009 4:08:24 PM
Backup Statistics: Session Queuing Time (hours) 0.00 ------------------------------------------- Completed Disk Agents ........ 0 Failed Disk Agents ........... 4 Aborted Disk Agents .......... 0 ------------------------------------------- Disk Agents Total ........... 4 =========================================== Completed Media Agents ....... 0 Failed Media Agents .......... 1 Aborted Media Agents ......... 0 ------------------------------------------- Media Agents Total .......... 1 =========================================== Mbytes Total ................. 79502 MB Used Media Total ............. 1 Disk Agent Errors Total ...... 4
This Log consist serious error . when a media agent aborted or unavailable the above backup unable write into media.

Tuesday, October 20, 2009

DCBBF Reached Max size : error occurred while storing detail catalog

[Major] From: BSM@dp@dp.com"Sunday_UNIXFS_Full" Time: 10/19/2009 5:48:50 AM
[61:4039] Following error occurred while storing detail catalog
information for device "HP:Ultrium 4-SCSI_1_ghiasma1"
with loaded medium "3133560a:4ac24668:105c:0001" [[DPK143L4] UNIXDAILYFSFULL_28] to Data Protector Internal Database:

This Error Occours When your DCBF dirctory default size(4GB) Limit Reached. you can remap add another path for dcbf through omnidbutil - remap command gothrough my privious post.

Monday, October 12, 2009

Backup Failures due to Drive Busy

Warning] From: BSM@dp.dp.com"BRS DAILY FULL - SUNDAY" Time: 10/11/2009 9:30:06 PM[61:2013] Some of the backup devices are occupied. Session is waiting for all the devices to get free.
[Critical] From:
BSM@dp.dp.com "BRS DAILY FULL - SUNDAY" Time: 10/11/2009 10:30:33 PM[61:2015] Timeout waiting for the devices to get free. The session will terminate.
[Critical] From:
BSM@dp.dp.com "BRS DAILY FULL - SUNDAY" Time: 10/11/2009 10:31:09 PM None of the Disk Agents completed successfully. Session has failed.
[Normal] From:
BSM@dp.dp.com "BRS DAILY FULL - SUNDAY" Time: 10/11/2009 10:31:09 PM
Backup Statistics:

Session Queuing Time (hours) 1.02
-------------------------------------------
Completed Disk Agents ........ 0
Failed Disk Agents ........... 0
Aborted Disk Agents .......... 0
-------------------------------------------
Disk Agents Total ........... 0
===========================================
Completed Media Agents ....... 0 Failed Media Agents .......... 0 Aborted Media Agents ......... 0 ------------------------------------------- Media Agents Total .......... 0 =========================================== Mbytes Total ................. 0 MB Used Media Total ............. 0 Disk Agent Errors Total ...... 0

This Error Occurs due to Drive Busy, We can change session waiting time in GLOBAL OPTION file, When We confiture the backup time if any backup is active it will wait for configured time in queqe after that backup session will terminiated.

Friday, October 9, 2009

Disk Agent Failure

[Warning]

From: VBDA@ghiacbs "CONFIGURATION:" Time: 7/7/2009 4:51:20 AM

[

81:77
] C:\Documents and Settings\Administrator\Local Settings\Temp\JETB535.tmp

Cannot open: ([32] The process cannot access the file because it is being used by another process. ) => not backed up.

[Warning]

From: VBDA@ghiacbs "CONFIGURATION:" Time: 7/7/2009 4:51:20 AM

[

81:77] C:\Documents and Settings\Administrator\Local Settings\Temp\JETB536.tmp

Cannot open: ([32] The process cannot access the file because it is being used by another process. ) => not backed up.

[Warning]

From: VBDA@ghiacbs "CONFIGURATION:" Time: 7/7/2009 4:51:20 AM

[

81:77] C:\Documents and Settings\Administrator\Local Settings\Temp\JETB581.tmp

Cannot open: ([32] The process cannot access the file because it is being used by another process. ) => not backed up.

[Critical]

From: BDA-NET@ghiacbs "F:" Time: 7/7/2009 6:10:33 AM

IPC failure reading NET message (IPC Read Error

System error: [10054] Connection reset by peer

) => aborting.

[Critical]

From: BDA-NET@ghiacbs "C:" Time: 7/7/2009 6:10:38 AM

IPC failure reading NET message (IPC Read Error

System error: [10054] Connection reset by peer

) => aborting.

[Critical]

From: BDA-NET@ghiacbs "CONFIGURATION:" Time: 7/7/2009 6:10:33 AM

IPC failure reading NET message (IPC Read Error

System error: [10054] Connection reset by peer

) => aborting.

[Critical]

From: VBDA@ghiacbs "F:" Time: 7/7/2009 6:10:33 AM

Unexpected close reading NET message => aborting.

[Critical]

From: VBDA@ghiacbs "C:" Time: 7/7/2009 6:10:58 AM

Unexpected close reading NET message => aborting.

[Critical]

From: VBDA@ghiacbs "CONFIGURATION:" Time: 7/7/2009 6:10:53 AM

Unexpected close reading NET message => aborting.

[Critical]

From: VBDA@ghiacbs "F:" Time: 7/7/2009 6:10:33 AM

Connection to Media Agent broken => aborting.

[Critical]

From: VBDA@ghiacbs "C:" Time: 7/7/2009 6:10:58 AM

Connection to Media Agent broken => aborting.

[Critical]

From: VBDA@ghiacbs "CONFIGURATION:" Time: 7/7/2009 6:10:53 AM

Connection to Media Agent broken => aborting.

[Normal]

From: VBDA@ghiacbs "F:" Time: 7/7/2009 6:10:33 AM

ABORTED Disk Agent for ghiacbs:/F "F:".

Sunday, September 27, 2009

Migrating Client from one cell to another cell manager Host name reported by the clinet Error



Above error i got when i migrated one client from one cell to another . i think it a host entry (It may not windows host entry, it may host entry for secure access ????.. But my previous experience with one host 2 cell manager it may camed due to overwriting the diskagent on client system by new or a different cell manager. ) problem in client side as per the error information . I have to check this UNIX system .











Tuesday, September 22, 2009

Could not connect to inet in order to start VBDA@ error


[Normal] From: BMA@adm-uhordou9re6.vmware.com "FILER1_Writer0" Time: 9/23/2009 3:09:47 PM Deleting expired file depots from file library "FILER1".
[Major] From: BSM@adm-uhordou9re6.vmware.com "SYSTEMSTATE" Time: 9/23/2009 3:10:13 PM[61:4006] Could not connect to inet in order to start VBDA@console.vmware.com "/CONFIGURATION CONFIGURATION:".
[Warning] From: BSM@adm-uhordou9re6.vmware.com "SYSTEMSTATE" Time: 9/23/2009 3:10:13 PM The backup of this object will be retried at end of session.
[Major] From: BSM@adm-uhordou9re6.vmware.com "SYSTEMSTATE" Time: 9/23/2009 3:10:39 PM[61:4006] Could not connect to inet in order to start VBDA@console.vmware.com "/CONFIGURATION CONFIGURATION:".
Above error message occurred due to client system is down. DP Cell Manager unable to contact client Disk Agent. it is a simple error . The bottom line is System May be OFF or Unavailable Condition.

HP data Protector backup /session Notifcation Configuration






Data protector Has it own Event log Manager and even you can configure Email Notifications.
I use Hmail Server to configure SMTP Email for my Dataprotector cell Manager. Here we can configure backup session,device failure , unexpected event details like number of varieties are there. for more info go through the screenshots. But one good thing if you have more backup operators administrator want to know what kind of backup fired by which operator(session user) is one kind of good information we can get in mail.
And built event log consist all kind information which configured in notification(Data protector Event log). there if observe we can learn more troubleshooting....





Friday, September 18, 2009

When The MMD not initialization in HP data Protector


If Log consist like this
9/18/2009 9:19:03 AM MMD.4268.5704 ["db/vel_cls_spec.c /main/dp56/dp60_fix/1":718] A.06.00 bDPWIN_00385 VELOCIS DB ERROR [3] internal error [-2009] The session is disconnected (S_SESDISCON)
9/18/2009 9:19:03 AM MMD.4268.5704 ["db/vel_cls_spec.c /main/dp56/dp60_fix/1":718] A.06.00 bDPWIN_00385 VELOCIS DB ERROR [3] internal error [-2009] The session is disconnected (S_SESDISCON)
9/18/2009 9:19:03 AM BSM.6124.4800 ["sm/bsm2/mmd.c /main/dp56/dp60_fix/4":314] A.06.00 bDPWIN_00385[mmd_establishConnection] can not queue for MMD multiple times9/18/2009 9:19:39 AM BSM.6124.4800 ["lib/snmpnt/snmp.c /main/dp56/dp60_fix/1":733] A.06.00 bDPWIN_00385Failed to send SNMP trap. Check SNMP service configuration
Above screen and log is example of MMD databasse initialization fail.
For this simply stop the DP service by omnisv -stop and start omnisv -start and check with omnisv -status now you will find MMD is Active ok . Problem almost clear try to Fire a Backup

Vm Ware ESX installation in VM Workstation 6.5














This is my Fifty First Post . I Choose some different subject as blog is dedicated to VMware ,Backup And Storage so i decided to post VMware ESX.
My PC configuration is AMD Phenomin Quadcore with 4GB Ram. and i Used Vmware workstation 6.5 for this use and i installed VMvare ESX 3.0.2 on this its worked perfect and i am able to installed Virtual Machines in this. Pls go through above screenshots.
More important thing is modifying the VMX configuration file. you have to add a line in this for that i am posting my entire VMX configuration file so if any body facing any problem they can compare the configuration file.
.encoding = "windows-1252"config.version = "8"virtualHW.version = "7"numvcpus = "2"vcpu.hotadd = "TRUE"maxvcpus = "4"
scsi0.present = "TRUE"scsi0.virtualDev = "lsilogic"memsize = "1964"mem.hotadd = "TRUE"scsi0:0.present = "TRUE"
scsi0:0.fileName = "Red Hat Enterprise Linux 5 64-bit.vmdk"ide1:0.present = "TRUE"ide1:0.autodetect = "TRUE"
ide1:0.deviceType = "cdrom-image"floppy0.present = "FALSE"ethernet0.present = "TRUE"
ethernet0.connectionType = "hostonly"ethernet0.virtualDev = "e1000"ethernet0.wakeOnPcktRcv = "FALSE"
usb.present = "TRUE"ehci.present = "TRUE"sound.present = "TRUE"sound.fileName = "-1"sound.autodetect = "TRUE"
mks.enable3d = "TRUE"pciBridge0.present = "TRUE"pciBridge4.present = "TRUE"pciBridge4.virtualDev = "pcieRootPort"pciBridge4.functions = "8"pciBridge5.present = "TRUE"pciBridge5.virtualDev = "pcieRootPort"pciBridge5.functions = "8"pciBridge6.present = "TRUE"pciBridge6.virtualDev = "pcieRootPort"pciBridge6.functions = "8"pciBridge7.present = "TRUE"pciBridge7.virtualDev = "pcieRootPort"pciBridge7.functions = "8"vmci0.present = "TRUE"monitor.virtual_mmu = "software"monitor.virtual_exec = "hardware"monitor_control.restrict_backdoor = TRUE
roamingVM.exitBehavior = "go"displayName = "ESX 5 64-bit"guestOS = "rhel5-64"nvram = "Red Hat Enterprise Linux 5 64-bit.nvram"virtualHW.productCompatibility = "hosted"ft.secondary0.enabled = "TRUE"tools.upgrade.policy = "useGlobal"
extendedConfigFile = "Red Hat Enterprise Linux 5 64-bit.vmxf"
ethernet0.addressType = "generated"uuid.location = "56 4d eb 26 32 60 2a 68-b2 4c 3a 9e a3 71 1e 10"uuid.bios = "56 4d eb 26 32 60 2a 68-b2 4c 3a 9e a3 71 1e 10"scsi0:0.redo = ""vmotion.checkpointFBSize = "134217728"pciBridge0.pciSlotNumber = "17"pciBridge4.pciSlotNumber = "21"pciBridge5.pciSlotNumber = "22"pciBridge6.pciSlotNumber = "23"pciBridge7.pciSlotNumber = "24"scsi0.pciSlotNumber = "16"usb.pciSlotNumber = "32"ethernet0.pciSlotNumber = "33"sound.pciSlotNumber = "34"ehci.pciSlotNumber = "35"vmci0.pciSlotNumber = "36"ethernet0.generatedAddress = "00:0c:29:71:1e:10"ethernet0.generatedAddressOffset = "0"vmci0.id = "-1552867824"
ide1:0.fileName = "H:\dgr\VMWare-ESX.3.0.2\VMWARE-ESX-SVR_3.0.2-52542.ISO"
tools.syncTime = "FALSE"
You have to add this line to your VMX Configuration file
monitor_control.restrict_backdoor = TRUE
after that as usual normal installations.
from Vmware infrastucture client i use SSHD for file tranfer to VMware ESX server. for that i enabled SSHD in VMware ESX ( /etc/ssh/sshd_config) add a line root permitlogin = yes
allmost you can run the show

Wednesday, September 16, 2009

Most Comman Problem with Host Entries in Data Protector



Most IPC error occurs in Dataprotector due to host name resolutions. to avoid IPC errors and to backup and restore any client i thought above way we can add client information in all clients host entry. I had this experience when restoring also we need installation server tobe resolved by destination restore client . so i hope above method may avoids most of IPC errors .

Monday, September 14, 2009

Hp Data Protector Recovering IDB Using omnidbutil fixmpos, omnidbcheck -bf , omnimm -media_info





When you run omnidbcheck -bf you will find if any corrupted dcdf file in IDB . in my case i deleted 2 dcdf file from the mapped directory and i run the command . then it showing 2 dcdf file are missing and not found ERORR. after that i run omnimm -media_info for that particular catalog id and i got the pool ,device information. so to fix this i run omnidbutil -fixmpos.
then i tired to restore the session which has been deleted previously its working but one problem if found that the maped dcbf directory not working it simply storing defatult path (ie. c:\programfiles\omniback\db40\dcdf only.

Sunday, September 13, 2009

Testing the Library hp data protector omnidbutil -show_locked_devs,uma -ioctl ,scsi controler check

Pls go through this
C:\>cd "Program Files"
C:\Program Files>cd OmniBack
C:\Program Files\OmniBack>cd bin
C:\Program Files\OmniBack\bin>omnidbutil -show_locked_devs
Locked devices/media/cartridges:================================
Type: DeviceName/Id: DRV1Pid: 4956Host: sgh636x1jt-
Type: CartridgeName/Id: LTO LIbPid: 4956Host: sgh636x1jt-Location: 1

C:\Program Files\OmniBack\bin>umi -ioctl scsi7:0:5:1
'umi' is not recognized as an internal or external command,operable program or batch file.
C:\Program Files\OmniBack\bin>uma -ioctl scsi7:0:5:1
*** PROGRAM: UMA VERSION: HP OpenView Storage Data Protector A.06.00
*** (c) Copyright Hewlett-Packard Company 2006*** License is restricted for use with licensed*** HP OpenView Storage Data Protector products.
scsi7:0:5:1> stat
Element Status (T=Transport, X=Im/Export, D=Drive, S=Storage): 82 T1 Empty "" ""
86 D1 Full "" "" from S8
1 S1 Full "" "" 2 S2 Full "" "" 3 S3 Full "" "" 4 S4 Full "" "" 5 S5 Full "" "" 6 S6 Full "" "" 7 S7 Empty "" "" 8 S8 Empty "" ""
scsi7:0:5:1> move D1 S8
scsi7:0:5:1> stat
Element Status (T=Transport, X=Im/Export, D=Drive, S=Storage): 82 T1 Empty "" ""
86 D1 Empty "" ""
1 S1 Full "" "" 2 S2 Full "" "" 3 S3 Full "" "" 4 S4 Full "" "" 5 S5 Full "" "" 6 S6 Full "" "" 7 S7 Empty "" "" 8 S8 Full ""
""scsi7:0:5:1>

hp data protector some good utils, omnicellinfo -cell,omnicheck -patches,omnidbutil -show_locked_devs,omnidb -session,





Thease commands are usefull for log analysis .



Hp Data Protector importing host, omnicc -import_host, adding ,importing a client into cell manager,adding client in multiple cell managers,cell_info

This is use full when you unalbe to import the client after installing the agents. or you are moving clients to another cell manager. in my case i moved the client from one cell manager to another cell manager by simpling uninstalling from existing cell manager after updated the disk agent or required integration agent to that client from new cell manger for that client. after that added the path in cell info now i am able to fire backup and restore. after that i thought for a single client with in 2 cell managers i tried it with Vmware workstiaons having 2 differen cell managers and one client with disk agent and media agent here i got sucsess i am able backup and restore through boath cell manager.
Differen phases with screen shots.

Main Cell Path info

can't import host for Cell Manager in Cellmanager2 and i am update the client through cellmanager2 after its able to import the client.
after adding that i fired 2 backups in different cell managers the details and timeing and cell manager info is highlighted in redboxes.

My main concept is when ever the host not resolved or not imported the client we can use same technique .







HP data protector How to add A Client in two Cell Manager,omnicc -import_host


Is it possible ? . Let me try

I tried this after facing a small problem in office yesterday night.

We got 2 sites in our office production environ and development is another one.

we have two data protector cell managers which are not all having any relationship.

Today i have to restore the Production database to development server but development server is not a client of Cell Manager1{production}. it is a client of Cell manager2{development}.

Saturday, September 12, 2009

Hp Data Protector Internal dabase communication error RDS Serivice



You will get this when one of Serivice failed in Dataprotector.
go to services check wheather HP Data protector RDS Service is working or not. restart the service and open the cell Manager .








Friday, September 11, 2009

Hp Data Protector unable to open data catalog binary file error when restoring the backup



This is one of realtime error (Today it happend ) . In our genereal restore checkin process to day we found SAP DB full backup is unable to open dcbf directory error.
Humm. ...

when you click the Detail Button you can some hint or else as my yesterday post simply we can through omnidbutil -fixmpos it fixes the error (Even in details you can see this ).
And it worked .

Thursday, September 10, 2009

Hp Dataprotector idbutil and detail catalog binary files (dcbf)




One of the best tool in DP where its dealswith DCBF
(Detail catlog binar file database. ) nothing but storage session information which consits entire details of a particular session.
we faced a realtime problem in this senario where my C: drive is having less space and after some days (nearly one year +) my c: drive is full and i have to map another directory to Dataprotector. so below example is






dcdf is having 4gb space by default i maped to a dricroy into c:\ and given prioriy 0 so now Data protector is using mapped directory as dcbf catalog directory. but in realtime senarion we have to work with global option file. unfortunetly i dont have the screen shot of my work on that day.
in trail version you may not face any problem but realtime you may not get this much easy work done . For more info gothrough my previous posting on GLOBAL OPTION







































One of most realtime utility in Hp Data Protector.






Total Pageviews
